Sidecar (Rolling) Upgrade from Kafka 3 to Kafka 4

This page describes the step-by-step process for upgrading an existing Kafka 3.x cluster to Kafka 4.x using a sidecar (rolling) upgrade approach, where some brokers temporarily run Kafka 3 while others run Kafka 4.

This approach ensures no cluster downtime and enables a safe, gradual migration.

Current setup

The existing Kafka 3 cluster is running and healthy.

Validate the existing Kafka 3 setup

Before you start the upgrade, verify that the Kafka 3 cluster is fully functional.

List topics

/usr/odp/current/kafka3-broker/bin/kafka-topics.sh \
 --list \
 --bootstrap-server testclusterodp1:6669 \
 --command-config client-kerb.prop

Create a sample topic

/usr/odp/current/kafka3-broker/bin/kafka-topics.sh \
 --create \
 --topic dilraj \
 --bootstrap-server testclusterodp1:6669 \
 --command-config client-kerb.prop \
 --partitions 3 \
 --replication-factor 3

Created topic dilraj.

Produce sample data

/usr/odp/current/kafka3-broker/bin/kafka-console-producer.sh \
 --topic dilraj \
 --bootstrap-server testclusterodp1:6669 \
 --producer.config client-kerb.prop

>This message was sent when Kafka was running in v3.7.2

Consume the data

/usr/odp/current/kafka3-broker/bin/kafka-console-consumer.sh \
 --topic dilraj \
 --bootstrap-server testclusterodp1:6669 \
 --consumer.config client-kerb.prop \
 --from-beginning

This message was sent when Kafka was running in v3.7.2

Verification: Messages are produced and consumed successfully, confirming the Kafka 3 setup is healthy.

1. You must provide a client configuration file for Kerberos or SSL authentication. The file typically takes one of the following forms.
   Kerberos enabled (client-kerb.prop):


   security.protocol=SASL_PLAINTEXT



   SSL enabled (client-ssl.prop):


   security.protocol = SSL
   ssl.truststore.location = /opt/security/pki/truststore.jks
   ssl.truststore.password = Welcome



   Kerberos and SSL enabled (client-kerb-ssl.prop):


   security.protocol = SASL_SSL
   ssl.truststore.location = /opt/security/pki/truststore.jks
   ssl.truststore.password = Welcome


2. Before you perform any Kafka operation, export the required KAFKA_OPTS:


   export KAFKA_OPTS="-Djava.security.auth.login.config=/usr/odp/current/kafka4-broker/config/kafka3_jaas.conf -Djava.security.krb5.conf=/etc/krb5.conf"



   Run the command as the kafka user. If Ranger is enabled, alternatively grant the required permissions to the user from the Ranger UI before you perform the operation.

Prepare for upgrade

Update the broker protocol version

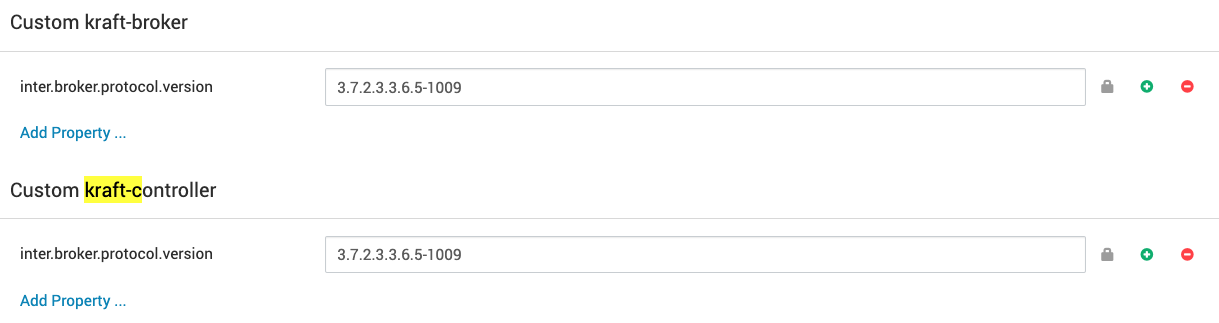

Before you install Kafka 4, update the following property under Ambari > Kafka3 > Configs > Custom kraft-broker and Custom kraft-controller. This property should point to the current kafka3.odp.version.

Restart all Kafka3 brokers from Ambari to apply the configuration. This ensures smooth compatibility during the upgrade.

Install the Kafka 4 management pack (MPack)

On all nodes on which Kafka 3 brokers are already running, install the Kafka 4 MPack:

[root@odin01 ~]# ambari-server install-mpack \
 --mpack=ambari-mpacks-kafka3-3.7.1.3.3.6.0-1.tar.gz

Expected output:

Ambari Server 'install-mpack' completed successfully.

Then restart the Ambari server:

ambari-server restart

Perform the sidecar upgrade

In the sidecar approach, brokers are upgraded one at a time — some running Kafka 3, others Kafka 4 — until all are upgraded.

Step 1: Stop one Kafka 3 broker

Using Ambari, stop the Kafka 3 broker on one node.

Step 2: Add the Kafka 4 service

In the Ambari UI, add the Kafka 4 service. During the wizard, select only one host — the same host where the stopped Kafka 3 broker was running.

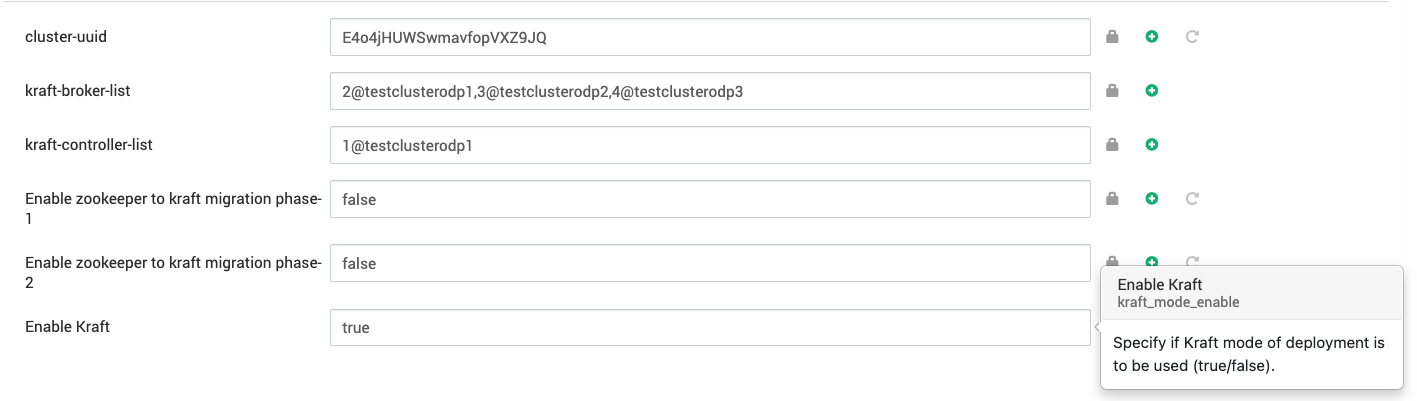

It is mandatory to perform this upgrade in KRaft mode, not ZooKeeper.

Step 3: Update the Kafka 4 configuration

Before you start the Kafka 4 broker, make the following adjustments.

Ensure all configurations under Advanced kraft4-controller and Advanced kraft4-broker match the Kafka 3 settings.

Step 4: Start the Kafka 4 broker

Start the new Kafka 4 broker through Ambari. Once you've verified the broker joins the cluster and its state is healthy, proceed to the next step.

Step 5: Remove the corresponding Kafka 3 broker

In Ambari, delete the Kafka 3 broker (the one you stopped earlier) from the Kafka 3 service.

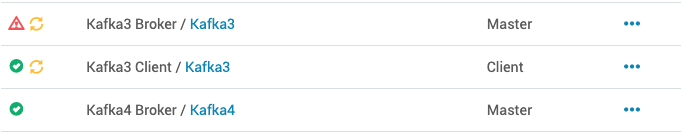

At this point:

• n-1 brokers are running Kafka 3.
• 1 broker is running Kafka 4.

The mixed-version cluster (Kafka 3 + Kafka 4) is functional.

Step 6: Verify post-upgrade functionality

Test the end-to-end functionality again:

/usr/odp/current/kafka4-broker/bin/kafka-console-consumer.sh \
 --topic dilraj \
 --bootstrap-server testclusterodp1:7001 \
 --consumer.config client-kerb.prop \
 --from-beginning

This message was sent when Kafka was running in v3.7.2

Monitor logs and metrics to confirm no errors or pending partition reassignments.

Step 7: Repeat for the remaining brokers

Repeat steps 1–6 for each remaining Kafka 3 broker until all are replaced by Kafka 4 brokers.

Finalize the upgrade

Once all brokers are running Kafka 4 and the cluster is stable:

1. Update the protocol version under Custom kraft-broker and Custom kraft-controller:


   inter.broker.protocol.version={kafka4.odp.version}


2. Restart brokers one by one to apply the new protocol version.
3. Once the cluster's behavior and performance are verified, finalize the upgrade by running:


   bin/kafka-features.sh --bootstrap-server localhost:9092 upgrade --release-version 4.3


After this step, downgrading to an older Kafka version is not supported.

Cleanup and post-upgrade notes

Once all brokers have been migrated and validated:

• Delete the Kafka 3 service from Ambari.
• Do not reinstall Kafka 3 using default configurations, as it can corrupt or override existing data directories.

Kafka 4 upgrade complete

Your Kafka cluster is now fully upgraded to Kafka 4.x, with all brokers running on the new version and reusing the existing data log directories.
