Trino Gateway LDAP Authentication

LDAP support in Trino Gateway is only used to authenticate users who will be logging into Trino Gateway to view information such as which cluster a query was routed to, rules, etc., and is not needed when setting up authentication for Trino. Trino Gateway will pass through credentials to the Trino cluster it connects to.

To set up LDAP specifically for connecting to Trino Gateway’s UI, you can configure your settings under ‘Advanced trino-gateway-ldap'.

Configuring LDAP

Configure LDAP settings under:

Advanced trino-gateway-ldap
The generated configuration file is:

Trino Gateway LDAP Configuration

The configuration file that will be created by the mpack is ‘Trino Gateway LDAP Configuration’, so if there are any configurations not addressed in ‘Advanced trino-gateway-ldap’, you can set them in the Jinja2 template.

LDAP Role Assignment

Role assignment is based on regex matching against LDAP groups.

Matching uses the value configured in:

LDAP Group Member Attribute

For more information on security in Trino Gateway, see trino-gateway/docs/security.md at 15 · trinodb/trino-gateway.

Non-LDAP Authentication

When LDAP is disabled, Trino Gateway creates a default admin user.

Change the default password immediately.

Preserved image

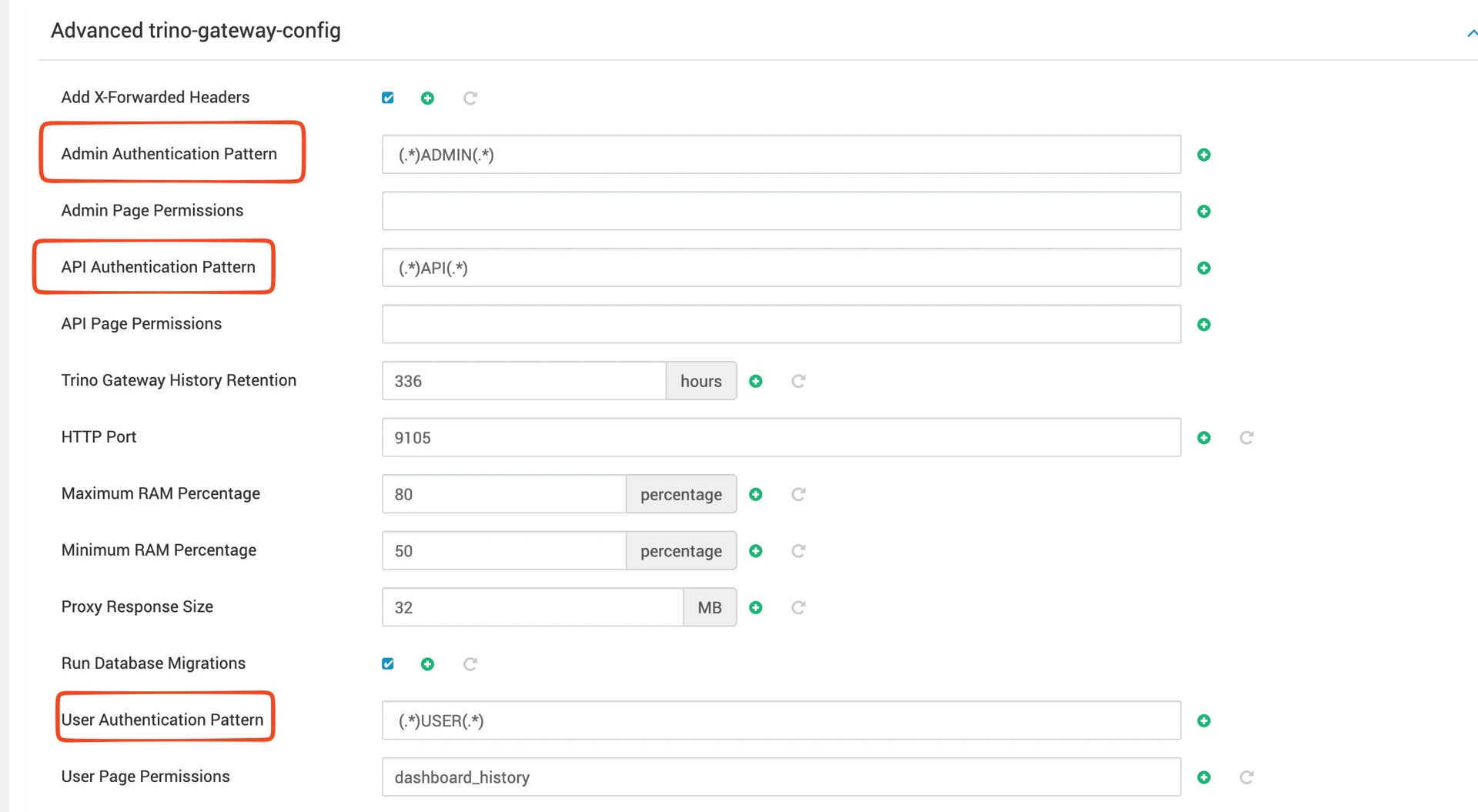

Required Authentication Patterns

Configure the following values:

Setting	Value
Admin Authentication Pattern	(.)ADMIN(.)
API Authentication Pattern	(.)API(.)
User Authentication Pattern	(.)USER(.)

Adding Additional Users

Add users in:

Trino Gateway Configuration
Example

presetUsers:
some_user:
password: 12345
privileges: USER

Multiple Privileges

Privileges can be combined using underscores.

Example:

presetUsers:
some_user:
password: 12345
privileges: USER_API
Supported privilege values:

USER
ADMIN
API

Externalizing Passwords

The passwords must either be supplied directly in the configuration file, or can be specified in /etc/trino-gateway/gateway.env

/etc/trino-gateway/gateway.env
To use the file method, first create the /etc/trino-gateway/gateway.env file and add your passwords there.
Example

SOMEUSER_PASS="12345"
ANOTHER_PASSWORD="abcdefg"
Restrict file permissions:
Ensure the file is only readable by root:

chmod 600 /etc/trino-gateway/gateway.env
Verify permissions:

ls -l /etc/trino-gateway/gateway.env
-rw------- 1 root root 15 May 19 19:54 /etc/trino-gateway/gateway.env
Restart Trino Gateway after modifying the environment file.

Referencing Environment Variables

When referencing the passwords in ‘Trino Gateway Configuration’ (which will be saved as ‘config.yaml’), you can replace them with the name of the variable you defined in /etc/trino-gateway/gateway.env.

presetUsers:
some_user:
password: ${ENV:SOMEUSER_PASS}
privileges: USER_API
For more information on security in Trino Gateway, see trino-gateway/docs/security.md at 15 · trinodb/trino-gateway.
