Architecture Overview

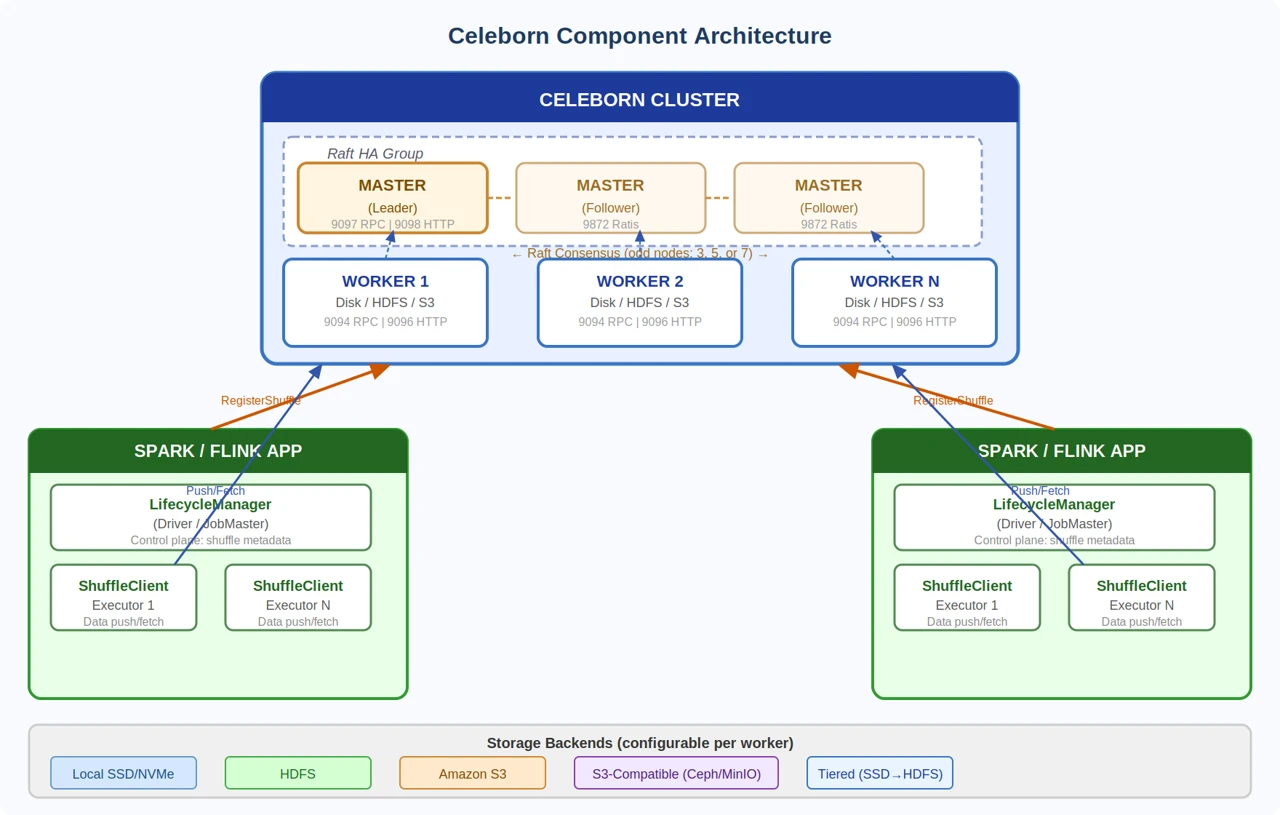

Component Diagram
Celeborn consists of three primary components: Masters (cluster coordinator), Workers (shuffle data storage), and Clients (embedded in compute engines).
Component Details
Master
- Role: Cluster coordinator and metadata manager
- Manages worker registration and health monitoring
- Allocates shuffle slots to applications
- Coordinates shuffle lifecycle and resource cleanup
- Achieves HA via Raft consensus — 3, 5, or 7 nodes recommended
Port | Protocol | Purpose |
|---|---|---|
9097 | TCP | Master RPC — Client and Worker communication |
9098 | TCP | Master HTTP — Web UI and REST API |
9872 | TCP | Ratis — Master-to-Master Raft consensus |
Worker
- Role: Shuffle data storage and serving
- Receives and buffers shuffle data from mapper executors
- Replicates data to peer workers for fault tolerance
- Serves shuffle data chunks to reducer executors
- Supports local disk, HDFS, S3, and tiered storage backends
Port | Protocol | Purpose |
|---|---|---|
9094 | TCP | Worker RPC — Client to Worker communication |
9096 | TCP | Worker HTTP — Worker Web UI and metrics |
Client
The client is embedded in compute engines and consists of two sub-components.
Component | Location | Responsibility |
|---|---|---|
LifecycleManager | Driver / JobMaste | Control plane — manages shuffle metadata and slot allocation |
ShuffleClient | Executor / TaskManager | Data plane — pushes and fetches shu |
Shuffle Lifecycle

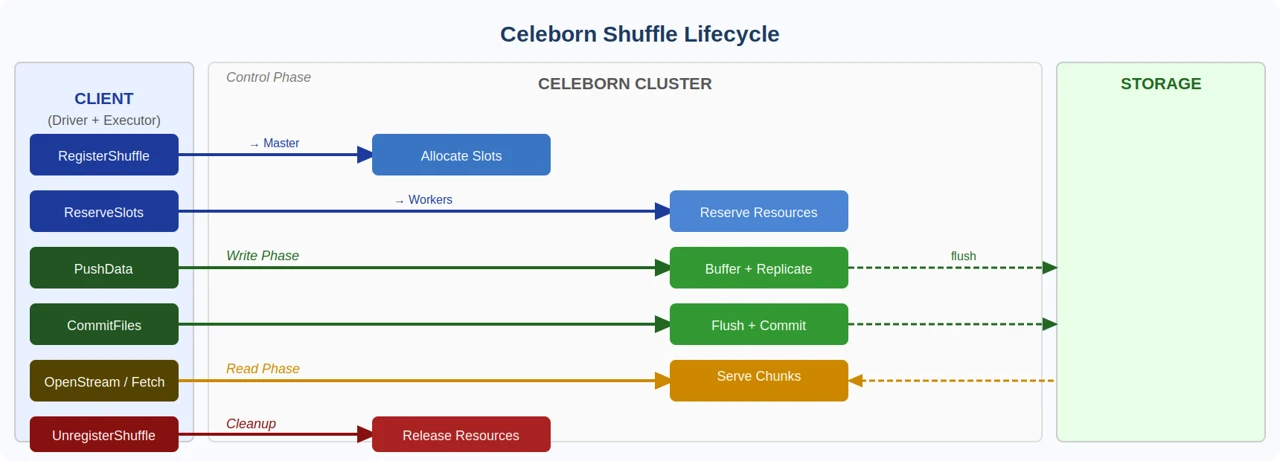

Every shuffle operation follows a structured seven-step lifecycle managed between the Client, Master, and Workers:
Step | Direction | Description |
|---|---|---|
Client → Master | Request slot allocation for the shuffle | |
Client → Workers | Reserve resources on selected workers | |
Executors → Workers | Mapper executors stream shuffle data to workers | |
Client → Workers | Flush buffers, finalize and commit partitions | |
Client → Workers | Prepare workers to serve data for reducers | |
Executors → Workers | Reducer executors fetch data chunks by partition | |
Client → Master | Release all resources after job completion |
