Configure Ingress for Pulse on Kubernetes

You need an Ingress object in your Kubernetes cluster to make Pulse services accessible from outside the cluster. To use an Ingress object, an Ingress controller must already be set up in your Kubernetes environment.

To enable external access, expose the following services through the Ingress controller, including their service names and ports.

Install Ingress

For the testing environment and to enhance developer productivity, we will install the Ingress controller ourselves using the following steps:

1. Install Nginx Controller.

Bash

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.12.2/deploy/static/provider/baremetal/deploy.yaml

The Ingress controller may take a short time to become fully operational. By default, wait for 1 minute before proceeding to the next step.

1. Create NGINX routes for services. To configure NGINX routes for all required services, copy and paste the following content into a file named nginx-routes.yaml:

Bash

---

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: ad-pulse-ui

namespace: PULSE_NAMESPACE

spec:

rules:

- host: "*.acceldata.dvl"

http:

paths:

- path: /

pathType: Prefix

backend:

service:

name: ad-pulse-ui

port:

number: 4000

ingressClassName: nginx

---

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: ad-pulse-ui

namespace: PULSE_NAMESPACE

annotations:

nginx.ingress.kubernetes.io/rewrite-target: /$2

spec:

rules:

- host: "*.acceldata.dvl"

http:

paths:

- path: /ui(/|$)(.*)

pathType: ImplementationSpecific

backend:

service:

name: ad-pulse-ui

port:

number: 4100

ingressClassName: nginx

---

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: accelo-manager

namespace: PULSE_NAMESPACE

annotations:

nginx.ingress.kubernetes.io/rewrite-target: /$2

spec:

rules:

- host: "*.acceldata.dvl"

http:

paths:

- path: /manager(/|$)(.*)

pathType: ImplementationSpecific

backend:

service:

name: accelo-manager

port:

number: 20001

ingressClassName: nginx

---

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: ad-streaming

namespace: PULSE_NAMESPACE

annotations:

nginx.ingress.kubernetes.io/rewrite-target: /$2

spec:

rules:

- host: "*.acceldata.dvl"

http:

paths:

- path: /streaming(/|$)(.*)

pathType: ImplementationSpecific

backend:

service:

name: ad-streaming

port:

number: 19005

ingressClassName: nginx

---

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: ad-hydra

namespace: PULSE_NAMESPACE

annotations:

nginx.ingress.kubernetes.io/rewrite-target: /$2

spec:

rules:

- host: "*.acceldata.dvl"

http:

paths:

- path: /hydra(/|$)(.*)

pathType: ImplementationSpecific

backend:

service:

name: ad-hydra

port:

number: 19072

ingressClassName: nginx

---

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: ad-axnserver

namespace: PULSE_NAMESPACE

annotations:

nginx.ingress.kubernetes.io/rewrite-target: /$2

spec:

rules:

- host: "*.acceldata.dvl"

http:

paths:

- path: /axnserver(/|$)(.*)

pathType: ImplementationSpecific

backend:

service:

name: ad-axnserver

port:

number: 19999

ingressClassName: nginx

1. Install NGINX Routes. To apply the NGINX Ingress routes, run the following command:

Bash

kubectl apply -f nginx-routes.yaml

1. Verify the NGINX services are running. To check if all NGINX-related services (Ingress controller and exposed services) are up and running, use the following commands:

Bash

kubectl get svc -n ingress-nginx

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

ingress-nginx-controller NodePort <IP Address 1> <none> 80:30592/TCP,443:31904/TCP 16m

ingress-nginx-controller-admission ClusterIP <IP Address 2> <none> 443/TCP 16m

Here, you can find the PORT that agents or users must use to connect to the service, for example, 30592.

1. Verify if all the mappings are installed properly or not.

Bash

kubectl get ingress -n scalability

NAME CLASS HOSTS ADDRESS PORTS AGE

accelo-manager nginx *.acceldata.dvl <IP Address 1>,<IP Address 2> 80 16m

ad-pulse-ui nginx *.acceldata.dvl <IP Address 1>,<IP Address 2> 80 16m

Here, you can see that the ingresses are correctly mapped to their respective services, and all Kubernetes nodes have the Node and Port configured and running.

1. Describe Ingress Resources. To view detailed information about the ingress resources, run the following command, and you can also see the expected output.

Bash

kubectl describe ingress accelo-manager -n scalability

Name: accelo-manager

Labels: <none>

Namespace: scalability

Address: 10.100.10.48,10.100.10.74,10.100.10.75,10.100.10.76,10.100.10.77

Default backend: default-http-backend:80 (<error: endpoints "default-http-backend" not found>)

Rules:

Host Path Backends

---- ---- --------

*.acceldata.dvl

/manager(/|$)(.*) accelo-manager:20001 (10.42.167.98:20001)

Annotations: field.cattle.io/publicEndpoints:

[{"addresses":["<IP Address 1>","<IP Address 2>","<IP Address 3>","<IP Address 4>","<IP Address 5>"],"port":80,"protocol":"HTTP","serviceName":"scal...

nginx.ingress.kubernetes.io/rewrite-target: /$2

Events:

Type Reason Age From Message

---- ------ ---- ---- -------

Normal Sync 3m42s (x142 over 38m) nginx-ingress-controller Scheduled for sync

Normal Sync 3m42s (x142 over 38m) nginx-ingress-controller Scheduled for sync

Normal Sync 3m42s (x142 over 38m) nginx-ingress-controller Scheduled for sync

Normal Sync 3m42s (x142 over 38m) nginx-ingress-controller Scheduled for sync

Normal Sync 3m42s (x142 over 38m) nginx-ingress-controller Scheduled for sync

Normal Sync 3m42s (x142 over 38m) nginx-ingress-controller Scheduled for sync

Ingress in OpenShift

OpenShift provides an Ingress Controller that exposes services from any namespace, providing an external or public URL for access. By default, the URL listens on port 80 and can route requests to all configured endpoints correctly.

The first step is to install the oc binary (OpenShift CLI) and connect it to your OpenShift cluster.

Steps to Create Routes for Pulse Services

1. Get all the services present in the Pulse namespace using the following command.

Bash

oc get svc -n <Pulse namespace>

Bash

oc get svc -n pulse

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

accelo-manager ClusterIP <IP Address 1> <none> 20001/TCP 24h

ad-alerts ClusterIP <IP Address 2> <none> 19015/TCP,8080/TCP 23h

ad-axnserver ClusterIP <IP Address 3> <none> 19999/TCP 23h

ad-connectors-sparkonk8s ClusterIP <IP Address 4> <none> 19003/TCP,19025/TCP 23h

ad-dashplot ClusterIP <IP Address 5> <none> 8080/TCP 23h

ad-dashplot-ui ClusterIP <IP Address 6> <none> 8080/TCP 23h

ad-pulse-ui ClusterIP <IP Address 7> <none> 4000/TCP,4001/TCP 23h

ad-hydra ClusterIP <IP Address 8> <none> 19072/TCP 23h

ad-notifications ClusterIP <IP Address 9> <none> 8090/TCP 23h

ad-pulse-ui ClusterIP <IP Address 10> <none> 4100/TCP,4101/TCP 23h

ad-pulsenode-sparkonk8s ClusterIP <IP Address 11> <none> 12003/TCP 21h

ad-sparkstats-sparkonk8s ClusterIP <IP Address 12> <none> 19004/TCP 23h

ad-streaming ClusterIP <IP Address 13> <none> 19005/TCP 23h

1. Expose a service by using the following command.

Bash

oc expose <Service name> -n <Pulse Namespace>

Bash

oc expose svc ad-pulse-ui -n pulse

1. The above command creates a public URL for the service. To view the URL, use the following command.

Bash

oc get route -n <Pulse Namespace>

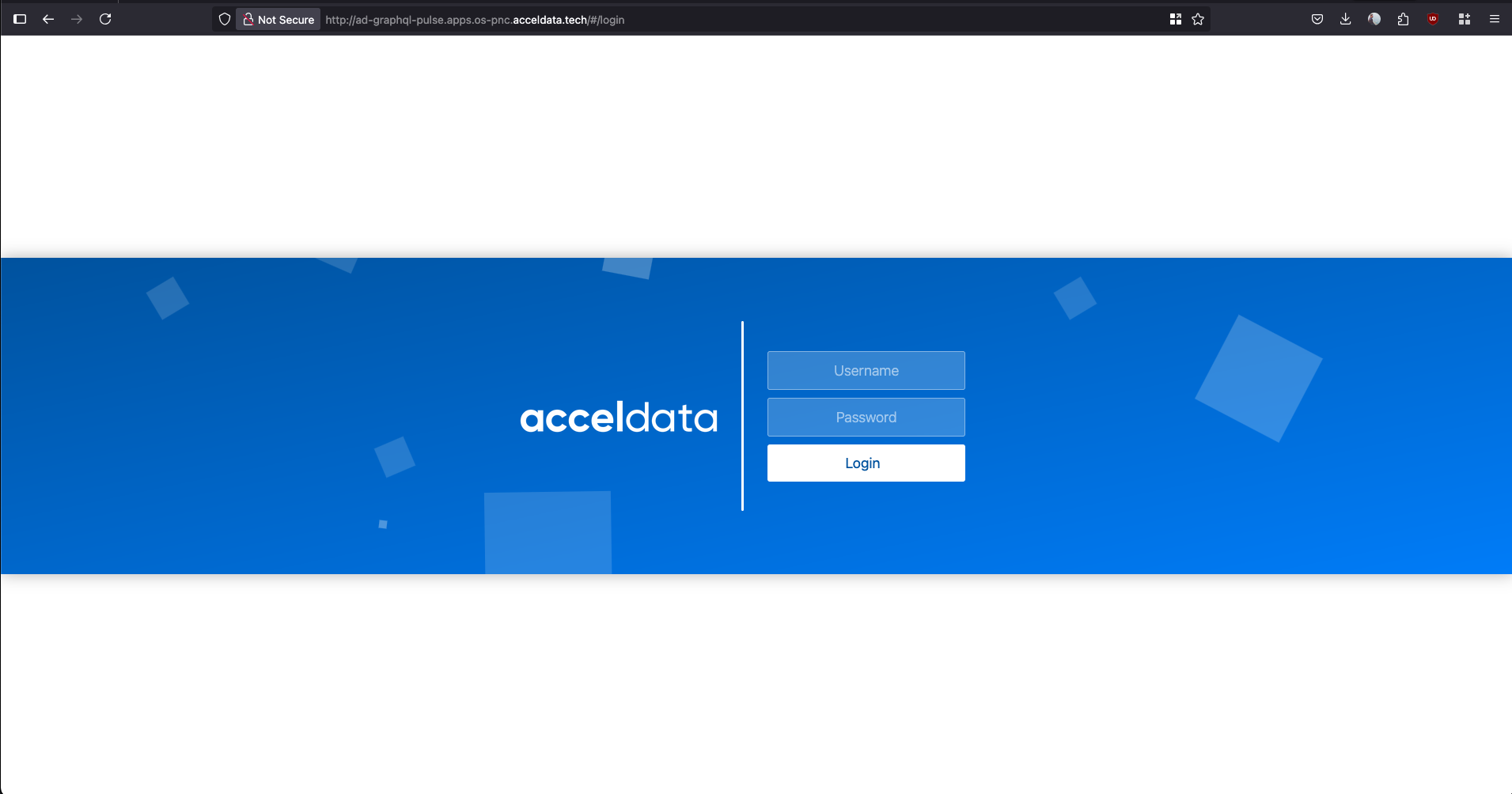

1. You can access the service directly using the Host, Port, or the public URL generated by the route.

Bash

oc get route -n pulse -o wide

NAME HOST/PORT PATH SERVICES PORT TERMINATION WILDCARD

accelo-manager accelo-manager-pulse.apps.os-pnc.acceldata.tech accelo-manager http None

ad-pulse-ui ad-pulse-ui-pulse.apps.os-pnc.acceldata.tech ad-pulse-ui ad-pulse-ui-4000 None

ad-pulse-ui ad-pulse-ui-pulse.apps.os-pnc.acceldata.tech ad-pulse-ui ad-pulse-ui-4100 None
