Spark RAPIDS

This guide explains how to install, configure, and run Spark with the NVIDIA RAPIDS Accelerator on your cluster environment.

Prerequisites

  • Ensure you have access to a cluster with GPU nodes and required permissions.
  • Java, Hadoop, Spark, and Hive are already installed and accessible on your environment.
  • CUDA libraries compatible with your RAPIDS version are installed.

Method A: Install RAPIDS Using Ambari Mpack

Spark RAPIDS is bundled with the Spark3 Ambari Mpack. Refer to the https://docs.acceldata.io/odp/odp-3.3.6.2-1/documentation/odp-working-with-ambari-management-packs#spark-3 documentation for installing the Spark3 Mpack. Once installed, refer to these steps:

  • Open the Ambari UI, navigate to Menu -> Services.
  • Click the ellipsis menu (⋯) in the top-right corner.
  • Select Add Service. The list of services appears on the screen.

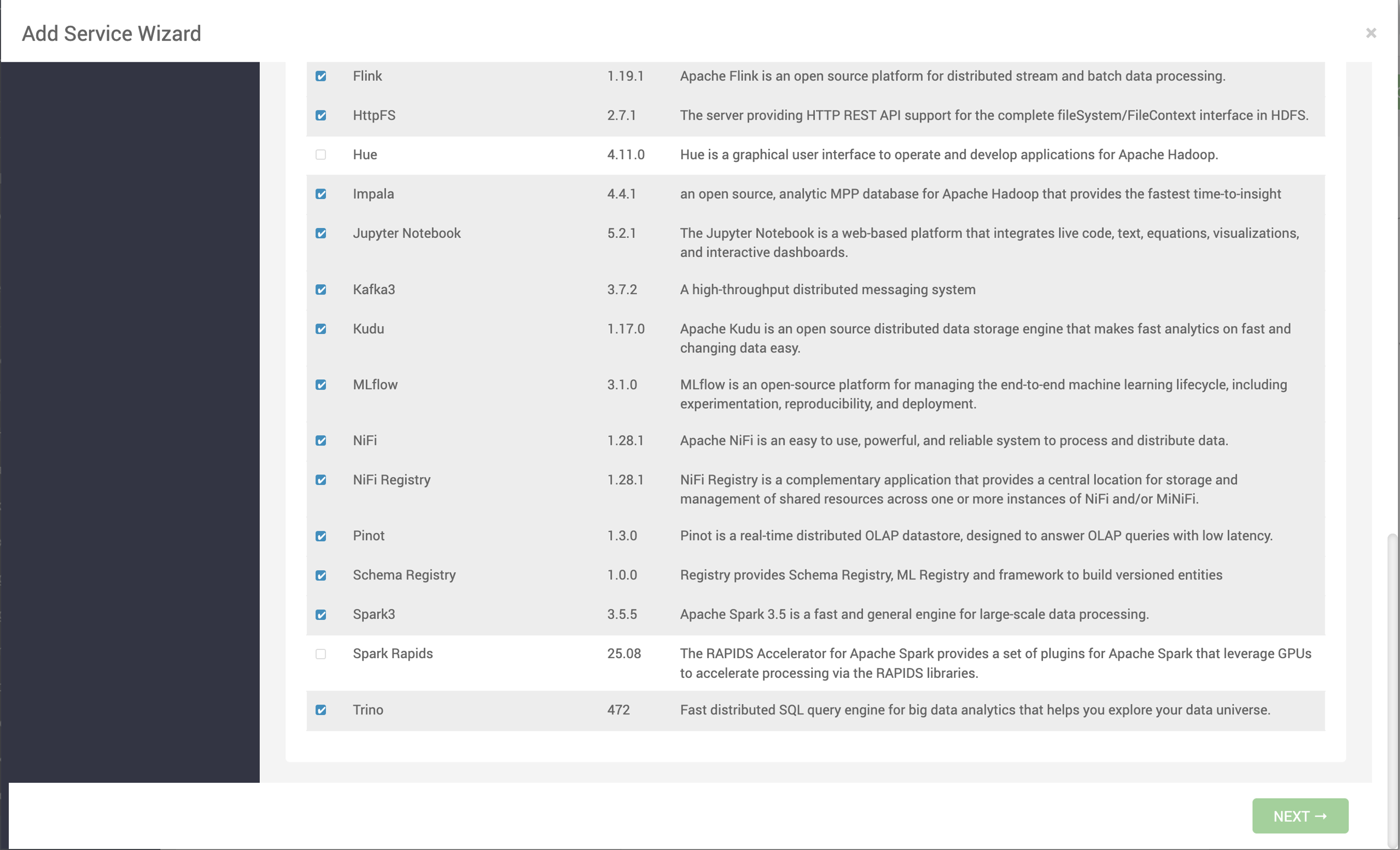

  • Select Spark Rapids and click Next.

Preserved image

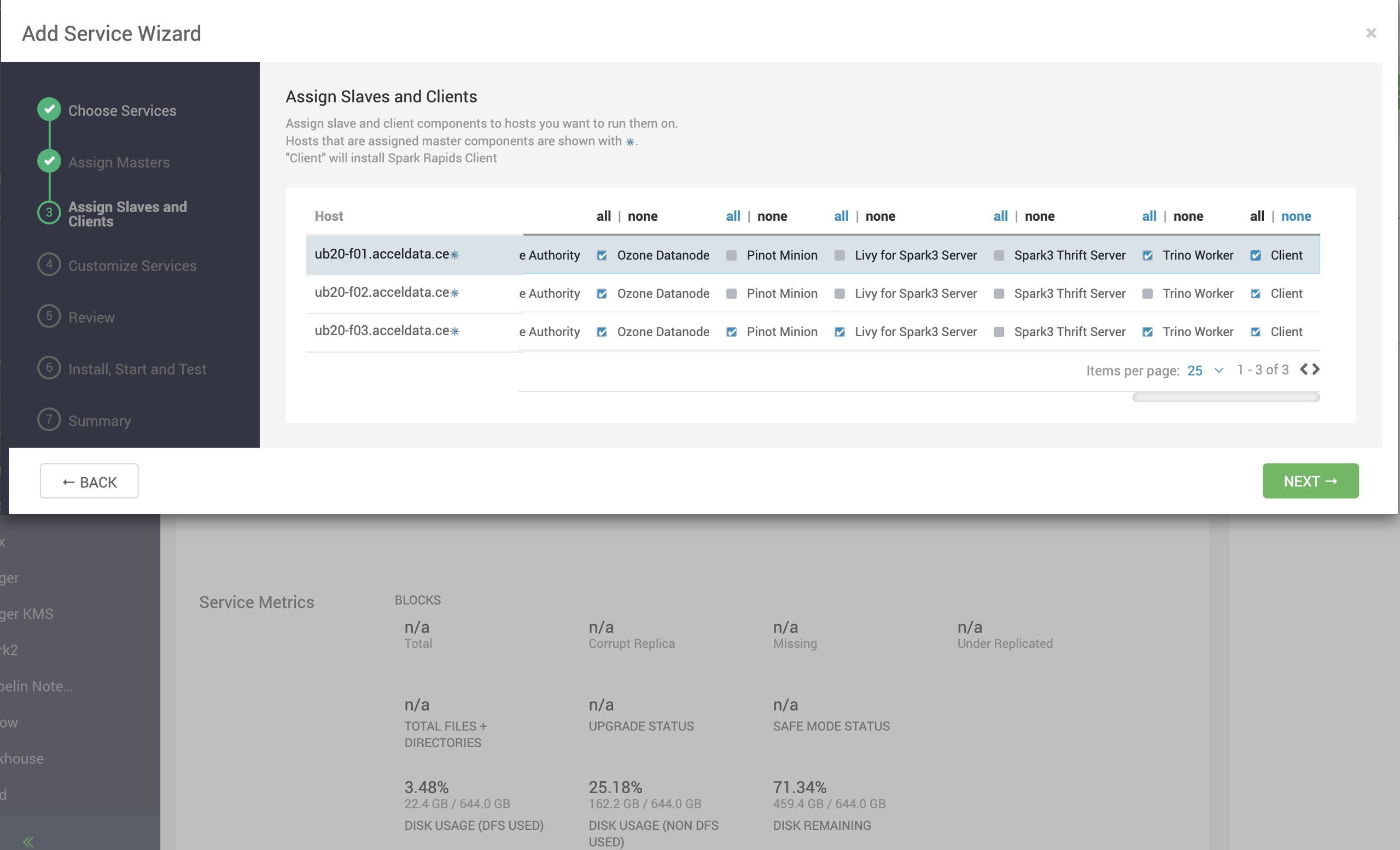

  • On the Assign Slaves and Clients page, select nodes where you want to install the Spark Rapid Client and click Next.

Preserved image

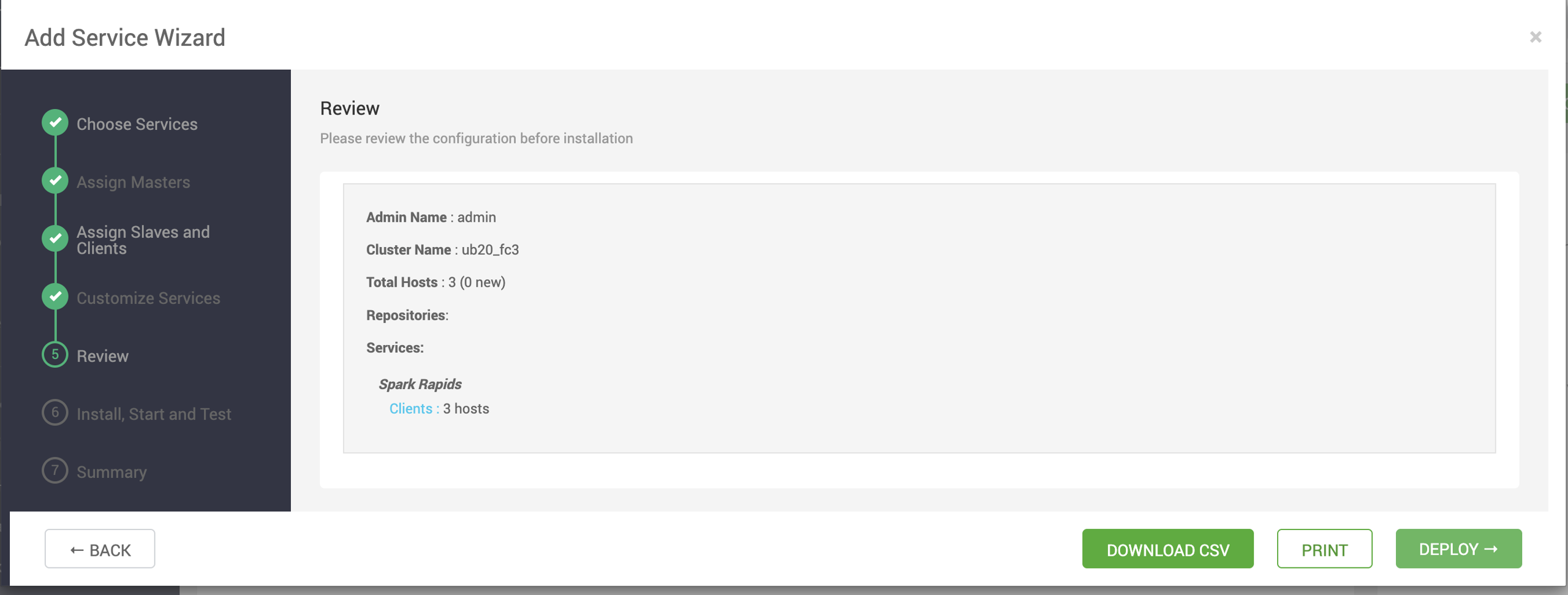

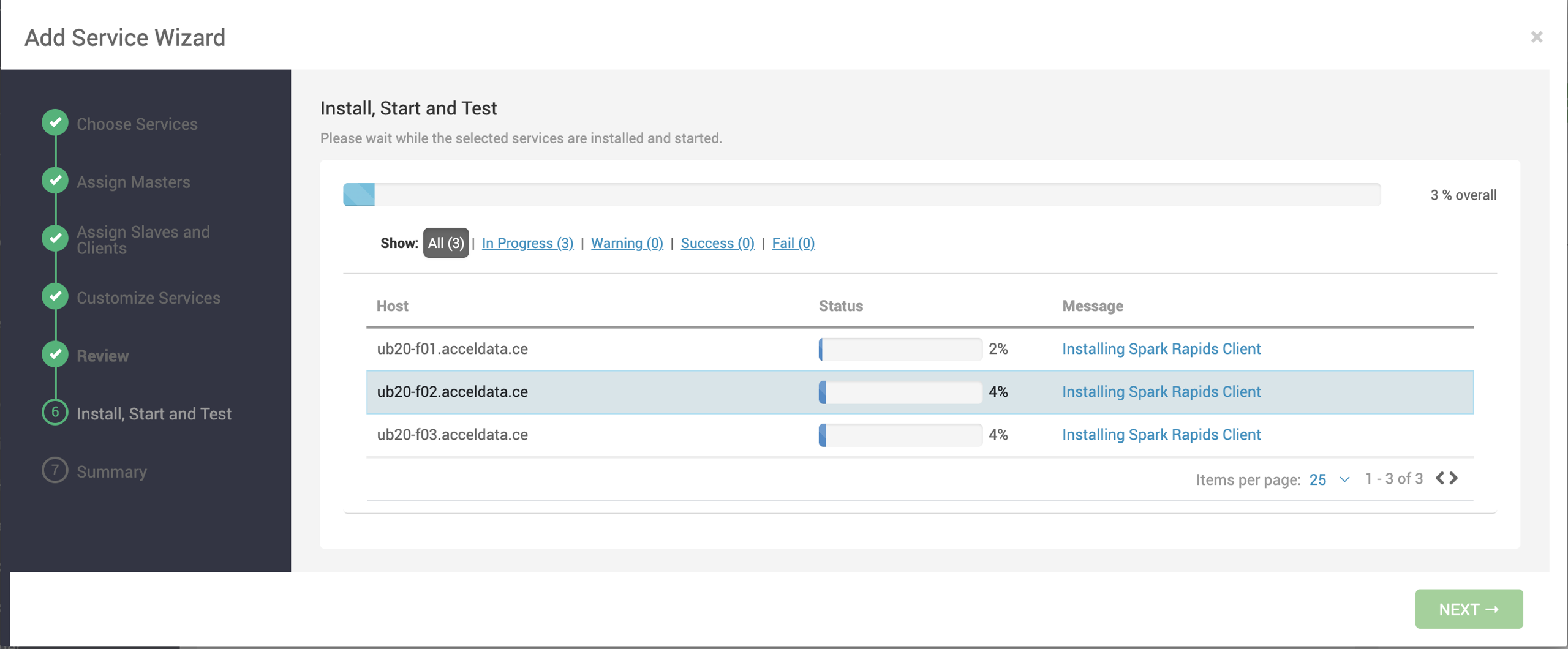

  • Review the configuration and click Deploy.

Preserved image

Preserved image

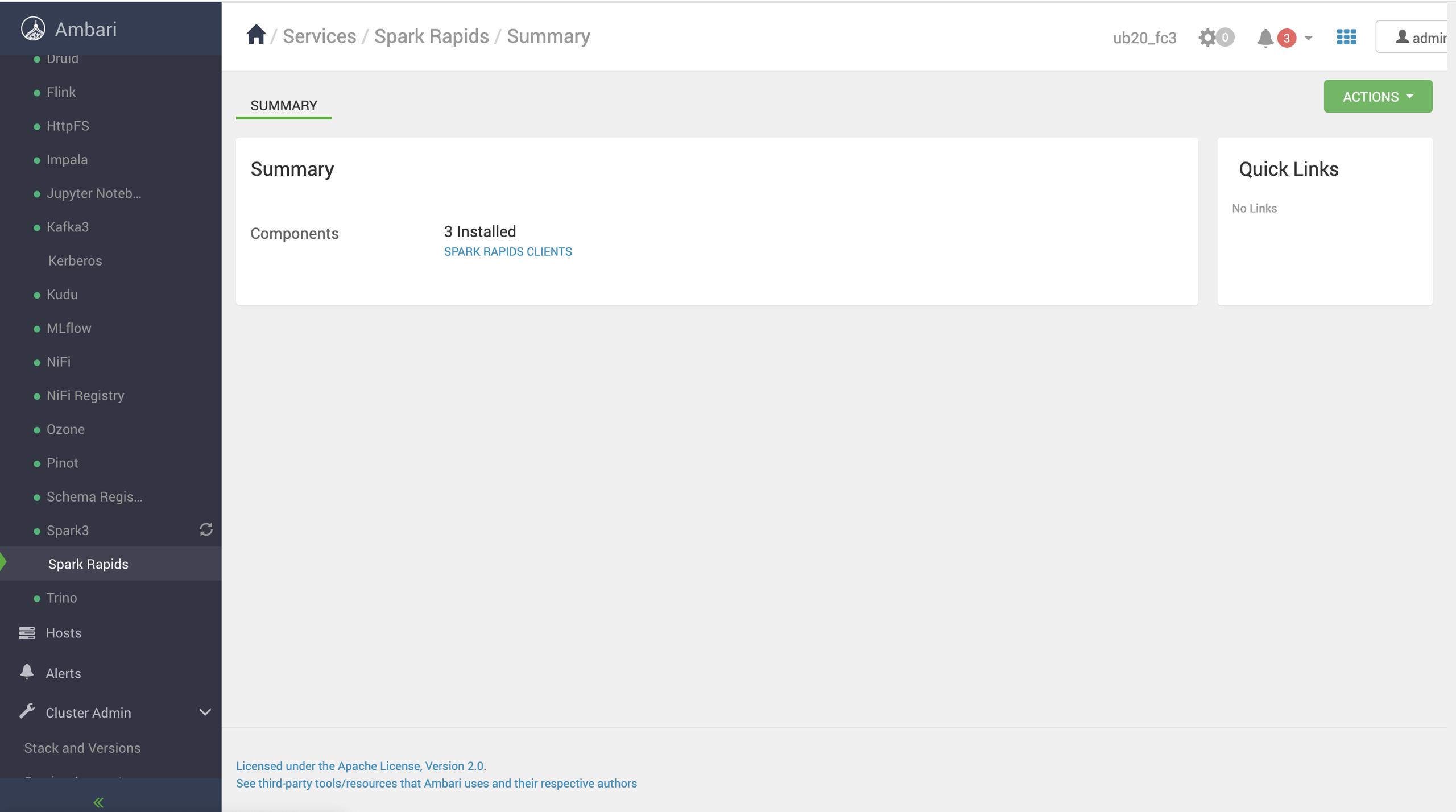

  • After installation, the service MLflow gets added under Services.

Preserved image

Method B: Spark Rapids Standalone Deployment

  • Download the standalone tarball.
wget https:__mirror.odp.acceldata.dev_v2_standalone_binaries_3.2.3.4-3_spark-rapids-25.03.3.2.3.4-3.tar.gz
  • Set environment variables:
export HIVE_HOME=_usr_odp_3.3.6.2-1_hive
export SPARK_HOME=_usr_odp_3.3.6.2-1_spark3
export HADOOP_CLASSPATH=$(hadoop classpath)
Note Ensure these paths match your cluster’s directory structure..
  • Validate CUDA installation:
nvidia-smi
This confirms GPU availability and CUDA version.
  • Launch Spark Shell with RAPIDS:
$SPARK_HOME_bin_spark-shell \\
--master yarn \\
--conf spark.yarn.queue=GPU \\
--conf spark.plugins=com.nvidia.spark.SQLPlugin \\
--conf spark.rapids.sql.enabled=true \\
--conf spark.executor.resource.gpu.amount=1 \\
--conf spark.task.resource.gpu.amount=0.1 \\
--conf spark.resources.discoveryScript=$SPARK_HOME_examples_src_main_scripts_getGpusResources.sh \\
--conf spark.executor.resource.gpu.discoveryScript=$SPARK_HOME_examples_src_main_scripts_getGpusResources.sh \\
--conf spark.metrics.enabled=false \\
--jars rapids-4-spark_2.12-25.06.0.3.3.6.2-1-cuda11.jar,cudf-25.06.0-cuda11.jar
Note Adjust script paths and version numbers based on your environment.
  • Run a sample job:
val df = spark.range(1, 1_000_000)
df.selectExpr("id", "id * 2 as double_id").show()
or

val df = spark.range(1, 100000000).toDF("id")
val result = df.groupByExpr("id % 100").count()
result.show()
Monitor the Spark UI (default: port 4040) to verify GPU usage.
  • Validate job execution:
  • Check ResourceManager logs for GPU assignment or RAPIDS loading issues.
  • Look for log messages containing com.nvidia.spark.rapids.
  • Optional logging:
--conf spark.rapids.sql.logging.enabled=true

Optional Steps

  • Tuning: Adjust spark.executor.memory, spark.executor.cores, and spark.executor.instances for optimal performance.
  • Library Version Check: Ensure Spark, CUDA, and CUDF versions are compatible.
  • Python Jobs: If running with PySpark, update the above procedure accordingly (e.g., use pyspark instead of spark-shell).
